| Lugar de origen: | China |
| Nombre de la marca: | GUOMAT |
| Certificación: | ISO/TS16949:2009 |
| Número de modelo: | 1F7737 |
| Cantidad de orden mínima: | negociable |
|---|---|
| Precio: | Negotiable |
| Detalles de empaquetado: | caja fuerte del cartón o como necesidad de los clientes |
| Tiempo de entrega: | 2-8 días del trabajo |
| Condiciones de pago: | T/T, Western Union, Paypal u otros |
| Capacidad de la fuente: | 1000pcs/week |
| Material: | Aleación y caucho de aluminio | Contitech: | FS 2870-16 RS |
|---|---|---|---|
| Garantía: | 12 meses | Peso neto: | 11,2 KILOGRAMOS |
| El otro nombre: | Amortiguación de aire con resorte de alta resistencia | Capacidad de la presión: | PA de 0.2-0.8 M |
| Peso bruto: | 12,6 KILOGRAMOS | Anillo del reborde: | Con |
| Método de la conexión: | Conexión del reborde | Pedernal: | W01-358-7737 |
| Alta luz: | W01-358-7737,amortiguación de aire con resorte de alta resistencia de la conexión del reborde |
||
FS 2870-16 RS Germany CONTITECH Industrial Air Spring High Strength Construction Firestone W01-358-7737
Guomat 1F6972 Industrial Single Convoluted Air Spring Specifications
❶Nut / Blind Nut
The Long Of The Nut:38 mm
Top Cover Plate Screw number: 32 pcs
Bottom Cover Plate Screw number : 32 pcs
Top Cover Plate Screw (Nut) Tooth : 3/8
Screw Center Distance of Top Cover Plate : 596 mm
Bottom Cover Plate Screw (Nut) Tooth :3/8
Screw Center Distance of Bottom Cover Plate : 596 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter: 638 mm
Bottom Cover Plate Diameter:638 mm
❹Rubber Bellows
Rubber Bellows MAXl Diameter : 709mm
Rubber Bellows Natural Height :680 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
FS 2870-16 RS UNF HP,
bellows type industrial air spring,
single-turn, effective area 2870cm square,
maximum stroke 16cm,
stud bolt installation,
inch seal ring,
high strength 175 PSI Max
Manufacturer: Mainland
Maximum inflation pressure
120 psi
series
life value
Bellows type
Single convolution
weight
24.5 pounds

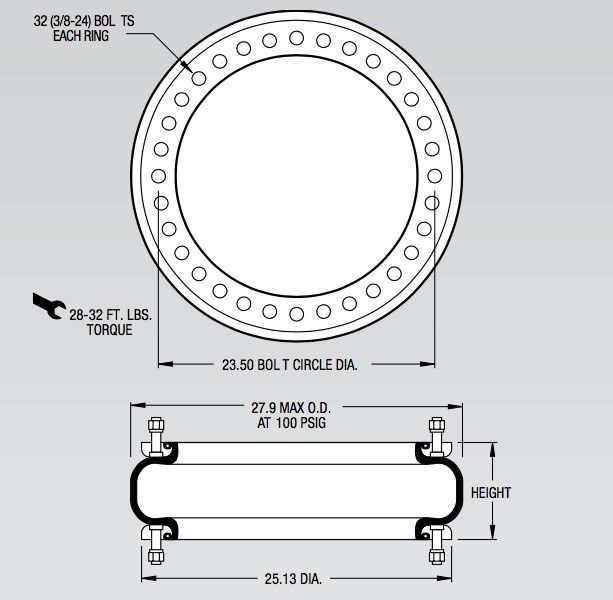

| Product Specifications | |
| Type: | 138-1.5 high strength |
| Aluminum clamping ring: | 32PCS 3/8 bolts (tightening torque 40Nm) |
| Bolt diameter Ø: | 596 mm |
| Board diameter: | 638 mm |
| Maximum diameter at 7 bar: | 709 mm |
| Minimum height: | 51 mm |
| Maximum height: | 215 mm |
| Stroke: | 164 mm |
| Maximum force: | 249.69 kN at 60 mm height |
Style 138-1.5 High Strength Con-struction
Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7737
W01-358-7734
Rubber bellows only
W01-358-0147
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
