| Lugar de origen: | CHINA |
| Nombre de la marca: | GUOMAT |
| Certificación: | ISO/TS16949:2009 |
| Número de modelo: | 2B4064 |
| Cantidad de orden mínima: | 1PC |
|---|---|
| Detalles de empaquetado: | caja fuerte del cartón o como necesidad de los clientes |
| Tiempo de entrega: | 2-8 días del trabajo |
| Condiciones de pago: | T/T, Western Union, Paypal u otros |
| Capacidad de la fuente: | 1000pcs/Week |
| Material: | Tapadera de acero, bramidos de goma | NORGREN: | 14 1/2 x 2 |
|---|---|---|---|
| Peso de la asamblea:: | 9.1 KG | Diámetro natural: | 380 milímetros |
| Capacidad de la presión: | PA de 0.2-0.8 M | Altura de diseño: | 70-280m m |
| DIÁMETRO DE LA PLACA: | 311m m | Dunlop: | SP 1988 |
| Alta luz: | sistema W01-R58-4074 del airbag del pedernal,sistema 14 el 1/2 x 2 del airbag del pedernal,sistema J40108M08A05 del airbag del pedernal |
||

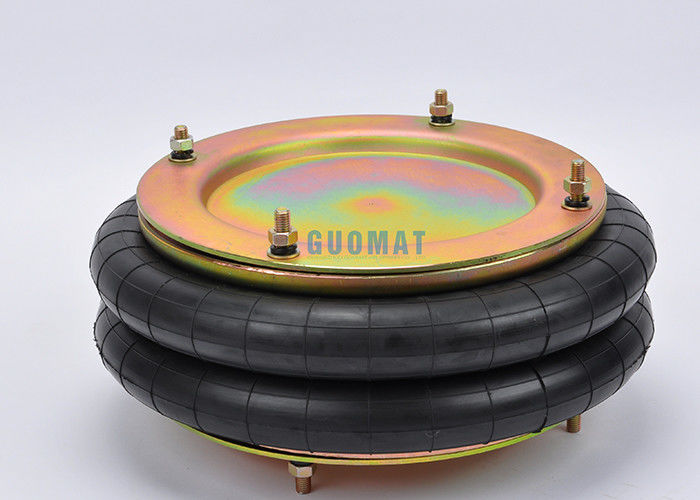

W01-R58-4074 Industrial Air Spring 14 1/2 X 2 DUNLOP SP1988 FRUEHAUF J40108M08A05
GUOMAT NO. 2B4074 Cross OEM:
Rubber bellows:14 1/2 X 2
Firestone:W01-R58-4074
Firestone:W01 R58 4074
Firestone:W01R584074
Weight:9,05 KG
FRUEHAUF J40108M08A05
LOHR
DUNLOP SP1988
GUOMAT NO. 2B4074 Data:
❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 283 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 283 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: M22X1.5
❸ cover
Top cover diameter (width): 311MM
Bottom cover diameter (width): 311MM
❹Rubber bellows
Rubber bellows Natural diameter: 390 mm
Working stroke: 70 MM- 280 MM
Maximum height: 280 MM
Minimum height (compression height): 70mm
Stroke height: 210 MM
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | M/31021 | 2 3/4“ x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | M/31022 | 2 3/4“ x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | M/31023 | 2 3/4“ x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | M/31041 | 4 1/2“ x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | M/31042 | 4 1/2“ x 2 | 280 | G3/8 |
| 1B 6x 1 | M/31061 | 6" x 1 | 155 | G1/2 |
| 2B 6x 2 | M/31062 | 6" x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
| 2B 8x 2 | M/31082 | 8" x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | M/31091 | 9 1/4” x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | M/31092 | 9 1/4“ x 1 | 230 | G3/4 |
| 1B 12x 1 | M/31121 | 12" x 1 | 105 | G3/4 |
| 2B 12x 2 | M/31122 | 12" x 2 | 215 | G3/4 |
| 3B 12x 3 | M/31123 | 12" x 3 | 315 | G3/4 |
