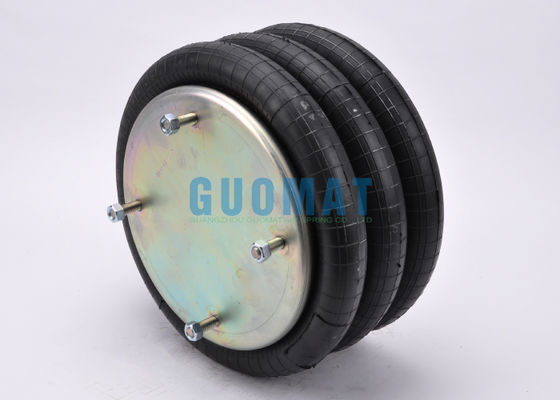

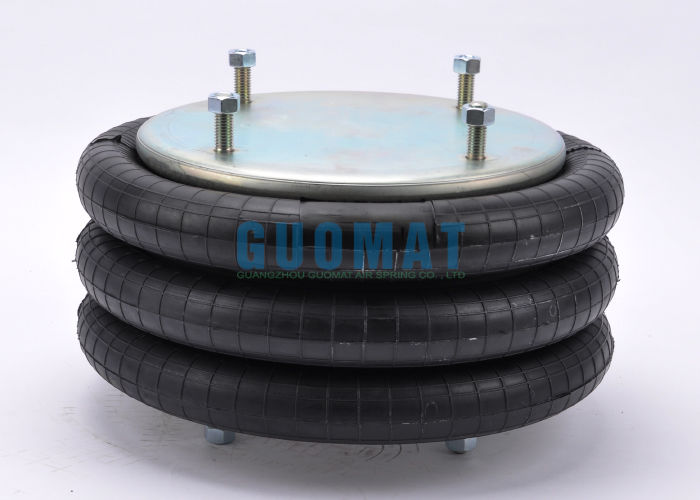

3B14-451 Goodyear Triple Bellow Air Spring W01-358-7846 Firestone Air Actuator

Datos del producto:

Lugar de origen:	Guangdong, China
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949:2009
Número de modelo:	3B7846

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	$69.9-79.9/pc
Detalles de empaquetado:	Caja fuerte de cartón o como los clientes necesitan
Tiempo de entrega:	2-8 días de trabajo
Condiciones de pago:	T/T, Western Union, L/C
Capacidad de la fuente:	1000pcs/semana

Contacto

Descripción detallada del producto

Nombre de la fuente:	Primavera de aire de triple resonancia	Material:	Goma y acero
Garantía:	12 meses	Función:	Elevación
Convoluciones:	3	Contitech:	FT 530-35 456
Ataque:	4.9 '' ~ 20.5 ''	Número de pernos:	4pcs
Resaltar:	Goodyear Triple Bellow Air Spring , Firestone Air Actuator replacement , Industrial Air Spring with warranty

3B14-451 Goodyear Triple Bellow Air Spring W01-358-7846 Firestone Air Actuator

Product Attributes

Attribute	Value
Spring Name	Triple Bellow Air Spring
Material	Rubber and Steel
Warranty	12 Months
Function	Lifting
Convolutions	3
Contitech	FT 530-35 456
Stroke	4.9''~20.5''
Number of Bolts	4pcs

Product Description

3B14-451 Goodyear Triple Bellow Air Spring W01-358-7846 Firestone Air Actuator

Product Name: Industrial Air Spring

Brand: GUOMAT

GUOMAT NO.: 3B7845

Material: Rubber and Steel

Warranty: 12 Months

Type: Inflatable

Convolutions: Three

Technical Data: Goodyear 3B14-451

Top cover diameter: 11.30''

Center distance between threaded hole: 7.75''

Center distance between the bolts: 8.84''

Bottom cover diameter: 11.30''

Maximum height: 20.50''

Minimum height: 4.9''

Original Equipment Manufacturers Number/Cross Reference Number

Contitech Air Spring Part Number: FT 530-35 456
Contitech Air Spring Part Number: FT530-35 456
Firestone Style Number: 333
Firestone Air Spring Part Number: W01-358-7846
Firestone Air Spring Part Number: W01 358 7846
Firestone Air Spring Part Number: W013587846
Goodyear Air Spring Part Number: 3B14-451
Goodyear Air Spring Part Number: 3B 14-451
Goodyear Flex Nunber: 578933335
Goodyear Flex Nunber: 578 93 3 335
Goodyear Flex Nunber: 578-93-3-335
FleetPride Number: AS7846
Taurus Air Bellws Number: 6335
Triangle Air Bags: AS-4456
TRP Number: AS78460
Automann Number: SP3B32RA-7846
Hendrickson Manufacturer Original Part Number: S-7856
Dayton Manufacturer Original Part Number: 654-7846
Ridewell Manufacturer Original Part Number: 1003587846C

Firestone Style 333 Air Spring

W01-358-7845	W01-358-7838
Blind nuts,1/4NPT	Blind nuts,1/4NPT,bumper

W01-358-7842	W01-358-7849
Blind nuts,3/4NPT	Blind nuts,3/4NPT,bumper

W01-358-7830	W01-358-7019
Countersunk steel bead ring 13/4 bolts,nuts,washers	Rubber bellows only

GUOMAT	Firestone	Flex Number	Piston	Top Plate	Bottom Plate
3B7990	W01-358-7990	38	5648	9	9
3B	W01-358-7994	38	5361	9	9
3B	W01-358-7995	38	5648	9	9
3B	W01-358-7996	38	5648	9	9
3B	W01-358-7998	38	5648	9	9
3B	W01-358-8006	38		9	9
3B	W01-358-8008	38	3285	9	9
3B	W01-358-8010	38	3159	9	9
3B	W01-358-8014	38	3285	9	9
3B	W01-358-8018	38	3285	9	9
