M/31082 NORGREN Universal Air Spring W01-R58-4055 Firestone Air Rubber Bellow

Datos del producto:

Lugar de origen:	Guangdong, China
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949:2009
Número de modelo:	2B8x2T

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	$89.9-99.9/pc
Detalles de empaquetado:	caja fuerte de cartón o como los clientes necesitan
Tiempo de entrega:	2-8 días de trabajo
Condiciones de pago:	T/T, Western Union, L/C
Capacidad de la fuente:	1000pcs/semana

Contacto

Descripción detallada del producto

Material:	Caucho+acero	Garantía:	1 año
Tipo de amortiguadores:	Aire comprimido	Características:	Conexión de brida
Nombre del modelo:	Spring de aire de brida	Norgren:	M/31082
Chorro:	Se aplicará el procedimiento siguiente:	Tamaño de puerto:	G1/2

M/31082 NORGREN Universal Air Spring W01-R58-4055 Firestone Air Rubber Bellow

Product Description

Item	Value
Type	Air Spring
Part NO.	2B8X2T
Warranty	12 Months
Color	Black
Place of Origin	Guangzhou,China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Industrial Machine

OEM Number / Cross Reference Number

Continental ContiTech: FD 138-18 DS 66505

Continental ContiTech: FD 138-18 1/2 M10

Continental ContiTech: FD 138-18 DS 1/2 M10

Continental ContiTech: FD 138-18 DS G1/2

Continental ContiTech: FD 138-18 DS G1/2 M10

Continental ContiTech: FD 138-18 DS/FD138-18DS/FD13818DS

Continental ContiTech Bellow: FD138-18/FD138-18/FD13818

Firestone No.:W01-R58-4055/WO1 R58 4055/WO1R584055

Firestone Style: 8"x2/8"x2/8x2

Goodyear:2B8-2150/2B8 2150/2B82150

Goodyear Flex No.:578-92-3-2150/578 923 2150/5789232150

Springride:2B8-2150/2B8 2150/2B82150

Springride Flex No.:578-92-3-2150/578 9232150/5789232150

Dunlop FR: 8"x2 SP1490
Dunlop FR: 8"x2 SP918
Dunlop UK (Pneuride): PNP 30550 0112/PNP305500112

Norgren: M/31082/M 31082/M31082

Parker: 8"x2 9109011

WEFORMA:WBZ-G350/WBZ-G350/WBZG350

Airtech:113060
Airtech Ref:2B-200/2B200/2B200

Prime-Ride New:2B8-2150/2B8 2150/2B82150

Prime-Ride New Flex No: 578-92-3-2150/578 92 3 2150/5789232150

FruehaufM 80A04/M48054
Granning 15803

8X2 Rubber Bellows Technical Data

Medium	Compressed air
Operating Temperature	-30 ... 50 °C, -22 ... 122 °F
Operating Pressure	0 ... 8 bar, 0 ... 116 psi
Port Size	G1/2
Nominal Diameter	8"
Number Of Convolutions	2
Stroke Length	175 mm
Theoretical Force	17650 N
Dimensions - Height	300 mm
Dimensions - Length	230 mm
Dimensions - Width	230 mm

About GUOMAT Air Spring

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

Product Images

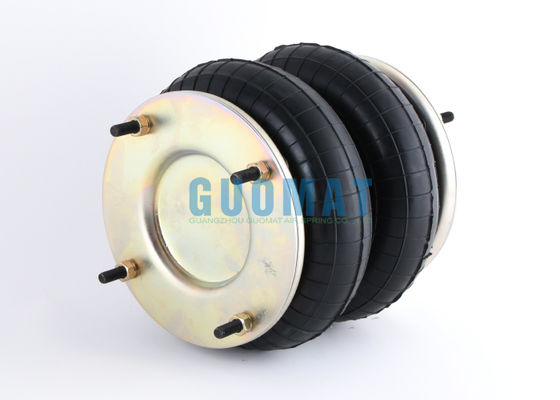

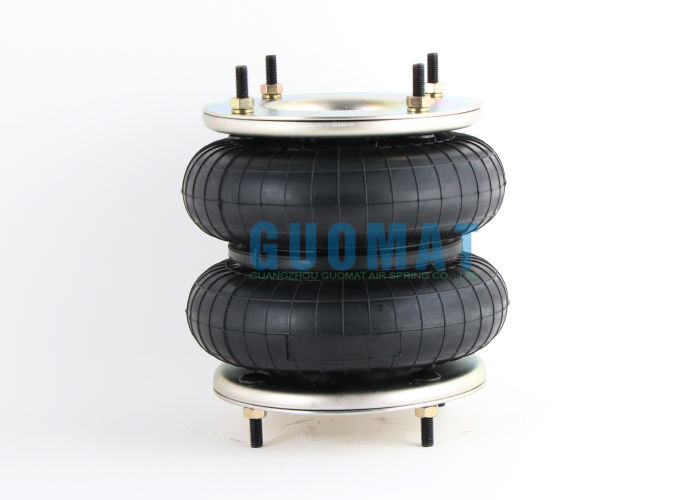

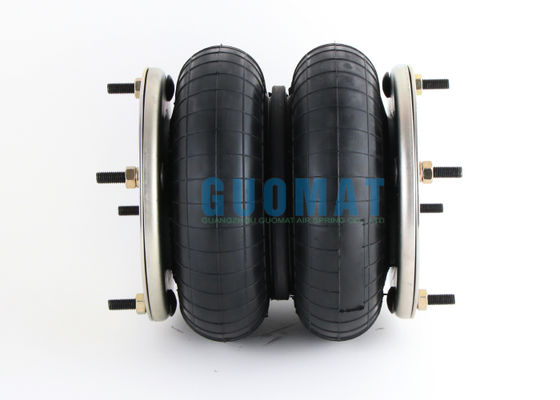

M/31082 NORGREN Universal Air Spring W01-R58-4055 Firestone Air Rubber Bellow 0
