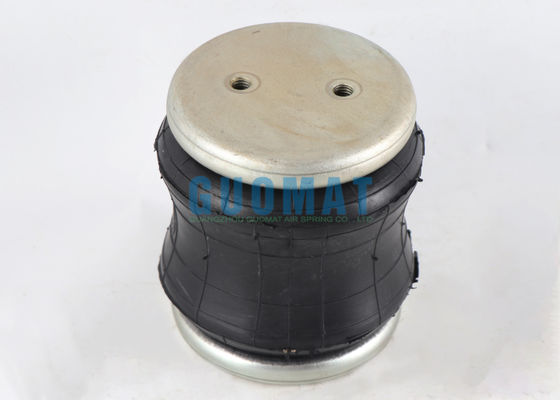

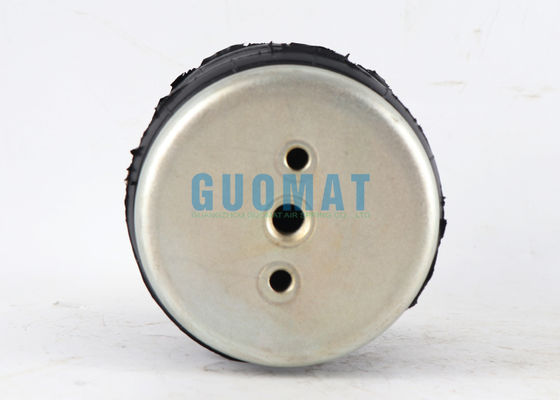

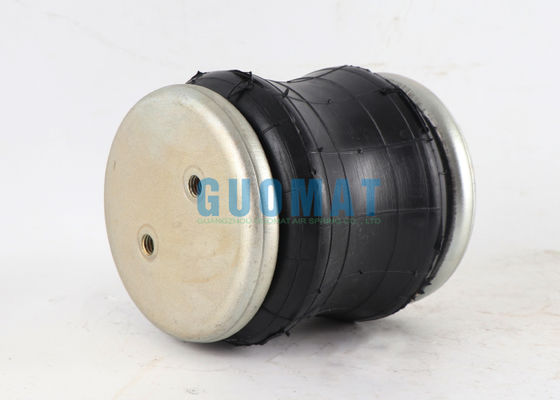

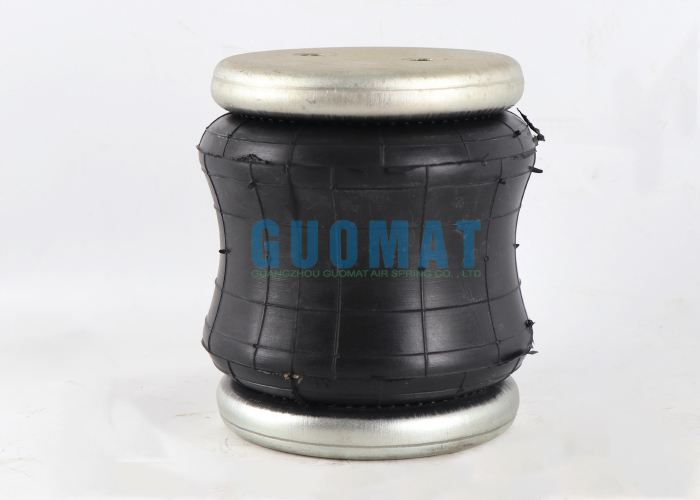

141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow

141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow

  • 141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
  • 141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
  • 141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
  • 141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
Datos del producto:
Lugar de origen: Guangdong, China
Nombre de la marca: GUOMAT
Certificación: ISO/TS16949:2009
Número de modelo: 2B7725
Pago y Envío Términos:
Cantidad de orden mínima: 6 piezas
Precio: $59.9-69.9/pc
Detalles de empaquetado: caja fuerte de cartón o como los clientes necesitan
Tiempo de entrega: 2-8 días de trabajo
Condiciones de pago: L/C, T/T, Western Union
Capacidad de la fuente: 1000pcs/semana
Contacto
Descripción detallada del producto
Material de primavera: Goma Garantía: 1 año
Característica del producto: Instalación "in-situ" Tipo: Lleno de gas
Posición: Universal Pedernal NO.: W01-358-7725 Las empresas de seguros de vida
Ajuste de aire: Se trata de un sistema de control de las emisiones de gases de escape. Altura: de una longitud igual o superior a:
Resaltar:

Firestone suspension air spring 141mm

,

pneumatic convoluted air bellow

,

Firestone W01-358-7725 air spring

141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
Product Specifications
Item Value
OEM.NO. 2B7725
Type Air Spring
Warranty 12 Months
Truck Model Heavy Duty Truck
Color Black
Place of Origin Guangzhou,China
Certification ISO/TS16949:2009
Material Rubber+Steel
Packing Neutral Packing
MOQ 1 Pcs
Quality High-Quality
Position Auto/Truck parts
Application Auto Suspension Systems
Reference Number
FIRESTONE W01-358-7725
FIRESTONE W01 358 7725
FIRESTONE W013587725

FIRESTONE WO1-358-7725
FIRESTONE WO1 358 7725
FIRESTONE WO13587725
Technical Data
  • Natural Height: 141mm
  • Gas Hole: 1/4-18NPTF
  • Threaded Hole: 3/8-16UNC
  • Natural Outer Diameter: 126mm
  • Cover Plate Diameter: 114.8mm
  • Center Distance Between Threaded Holes: 44mm
Industrial Air Springs in Agricultural Spray Equipment
Maintaining a Stable and Level Spray Boom:
When sprayers operate over uneven fields, traditional mechanical suspension systems struggle to respond quickly to ground changes, causing the boom to shake or tilt violently. This results in uneven spraying, with some areas experiencing excessive spraying (causing damage and waste) and others experiencing insufficient spraying (poor control effectiveness). Air springs, leveraging the elasticity of the compressed air within them, quickly absorb and cushion ground impacts, automatically maintaining the boom level and ensuring a constant, optimal distance between the nozzle and the crop canopy.
Effectively Protecting the Boom Structure:
Spray booms (especially those up to 20-30 meters long on large sprayers) are expensive and fragile components. Severe jolting and twisting can cause deformation or damage. The cushioning effect of air springs significantly reduces impact forces transmitted to the boom, extending the equipment's service life.
Automatic Terrain Following:
Advanced sprayer suspension systems incorporate sensors and control systems, enabling the air springs to actively adjust air pressure and travel, allowing each section of the boom to independently "mimic" the contours of the terrain for precise terrain following. This is especially important when working in hilly and undulating terrain.
141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow 0

etiqueta:

suspensión posterior del aire,

amortiguaciones de aire con resorte del coche,

amortiguaciones de aire con resorte posteriores
