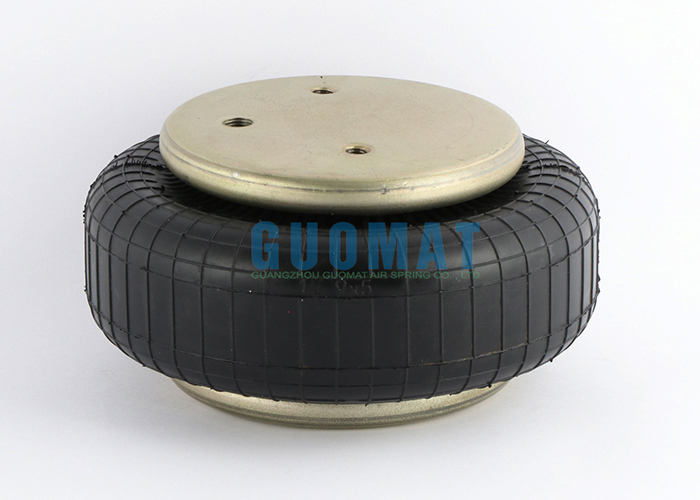

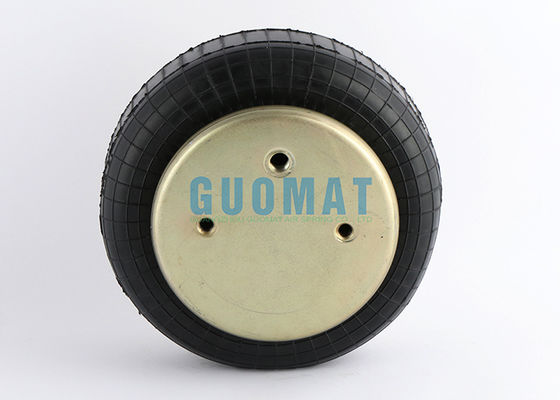

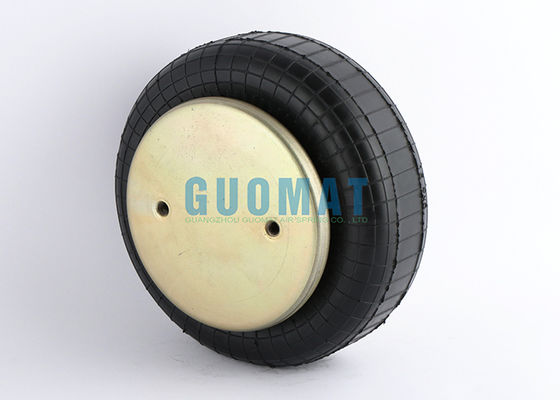

1B9-202 Goodyear Suspension Air Shock 578913201 Convoluted Rubber Air Spring

Datos del producto:

Lugar de origen:	Cantón, China
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949, ISO9001
Número de modelo:	1B9X5

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón fuerte o como requisito de clientes
Tiempo de entrega:	5-8 días laborables
Condiciones de pago:	L/C, D/A, D/P, Western Union
Capacidad de la fuente:	1000pcs/semana

Contacto

Descripción detallada del producto

Número de modelo:	1B9X5	Nombre de la marca:	GUOMAT
Material:	Caucho natural	OEM no.:	Goodyear 1B9-202
Temperatura de trabajo:	-40 ℃+70 ℃	Goodyear Bellows:	No se puede utilizar.
Convoluciones:	1	Estructura:	Cilindro único
Resaltar:	Goodyear suspension air shock , convoluted rubber air spring , 578913201 air spring

1B9-202 Goodyear Suspension Air Shock 578913201 Convoluted Rubber Air Spring

Product Specifications

Model No.	1B9X5	Weight	2KG
Car Model	Industrial equipment	Position	Rear
OEM	Yes	Type	Suspension Spring
Quality	High Quality	After-sales Service	7x16 hours service
Sample	Available	Transport Package	Standard Package

OEM Cross References

GOODYEAR 1B9-202
GOODYEAR 1B 9-202
GOODYEAR 1B9 202
GOODYEAR 1B9202
GOODYEAR 578913201
GOODYEAR 578 91 3 201
GOODYEAR 578-91-3-201

Key Dimensions

11" Maximum Diameter

3.6" Stroke Length

2.3" Compressed Height

1/4" Port Size

GUOMAT gas springs are durable, precisely designed, and cost-effective, suitable for a wide range of drive and vibration isolation applications. With their proven design, fabric-reinforced neoprene or natural rubber flexible components, and corrosion-resistant end clamps, GUOMAT gas springs offer superior quality and performance. As a actuator, GUOMAT gas springs can provide linear or angular motion. As a vibration isolator, gas springs effectively reduce the harmful effects of vibration.

We Have Other Single Convoluted Air Rubber Bellows

Single Convoluted	Double Convoluted	Triple Convoluted
1B12-305	2B6-530	2B6-531
1B14-350	2B6-532	2B6-535
1B14-352	2B6-536	2B7-540
1B14-364	2B7-541	2B7-542
1B15-376	2B7-545	2B7-546
1B15-378	2B8-550	2B8-552
1B12-313	2B8-553	2B8-554
1B14-351	2B9-200	2B9-201
1B14-362	2B9-204	2B9-205
1B15-375	2B9-216	2B9-250
1B15-377	2B12-309	2B12-218
	2B12-425	2B12-429
	2B12-437	2B12-416
	2B14-352	2B14-353
	2B14-354	2B14-355
	2B14-362	2B14-363
	2B14-452	2B15-375
	2B15-376	2B15-377
	2B15-378	2B19-8433
	2B22-8539
