Fire-stone W01-358-8027 38 W01-358-8029 3 Convoluted Air Spring Actuator
Refer NO.
Fire-stone W01-358-8027
Fire-stone W01 358 8027
Fire-stone W013588027
Fire-stone Style 38
Fire-stone W01-358-8029
Fire-stone W013588029
Fire-stone W01 358 8029
Contitech FT 330-29 466
Contitech FT 330 29 466
Contitech FT330-29 466
Contitech FT330 29 466
Contitech FT33029 466
Contitech FT 33029466
Goodyear 578933100
Goodyear 3B12-310
Goodyear 3B12 310
Goodyear 3B12310
Triangle 4466
Triangle 6334
Arvin Meritor 200117
Suspensions 200117
Silent Drive
Histeer
Specifications and Detailed Technical Parameters: 3B8027
Top plate screw (nut) teeth: 3/4-16UNC; 1/2-13UNC
Bottom cover plate screw (nut) teeth: 2×3/8-16UNC
The screw center distance of the Top cover plate: 157mm
The screw center distance of the bottom cover plate: 157mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPT
Top plate diameter (width): 231 mm
Diameter (width) of the bottom cover plate: 231 mm
Rubber Bellows MAX Diameter: 330mm
The Working Stroke: 117mm to 460mm
- Bumper block/bumper block
With bumper block
- Belt loop/Belt loop/Girdle Hoop
With belt loop: 2 pieces of belt loop/girdle hoop
Min. pressure: 0 bar
Return force to min.height: ≤400N
Overall weight with clamped plates: 5.9kg
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] |
| Height H[mm] | 380 | 8.8 | 11.9 | 15.1 | 18.4 | 21.7 | 25.1 | 23.6 |
| 340 | 10.7 | 14.4 | 18.2 | 22.0 | 25.9 | 29.8 | 21.6 |
| 300 | 12.3 | 16.5 | 20.8 | 25.1 | 29.5 | 33.7 | 19.2 |
| 260 | 13.7 | 18.2 | 22.9 | 27.6 | 32.3 | 36.9 | 16.6 |
| 220 | 14.8 | 19.5 | 24.6 | 29.6 | 34.6 | 39.5 | 13.8 |
| 180 | 15.9 | 21.1 | 26.5 | 31.8 | 37.2 | 42.4 | 10.7 |
| 140 | 17.0 | 22.4 | 28.1 | 33.6 | 39.1 | 44.7 | 7.5 |
Other types of 3 convolutions fir-estone air spring replacement we could offer
AIRSUSTECH No. | Contitech No. | Fire-stone No. |
3B7996 | FT330-29 520 | W01-358-7996 |
3B7994 | FT330-29 546 | W01-358-7994 |
3B7995 | FT330-29 547/64573 | W01-358-7995 |
3B8008 | FT330-29 431 | W01-358-8008 |
3B8010 | FT330-29 432 | W01-358-8010 |
3B8030 | FT330-29 498 | W01-358-8030/38 |
3B8006 | FT 330-29 430 | W01 358 8006/FLEX 38R/38D |
3B6383-38 | FT 530-30 | / |
3B6386 | FT 530-30 | / |
3B7808 | FT 530-32 336/FT 530 32 329 | W01-358-7808/ W01-358-7798/ FLEX 313D |
3B53032 | FT 530-32 -60717 | FLEX 313D |

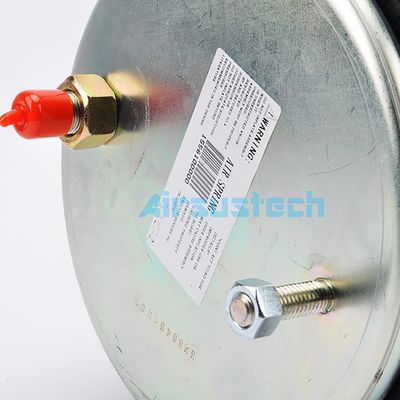

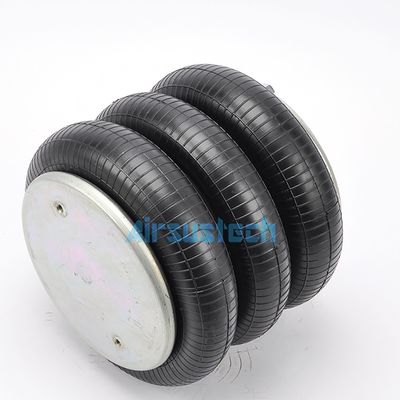

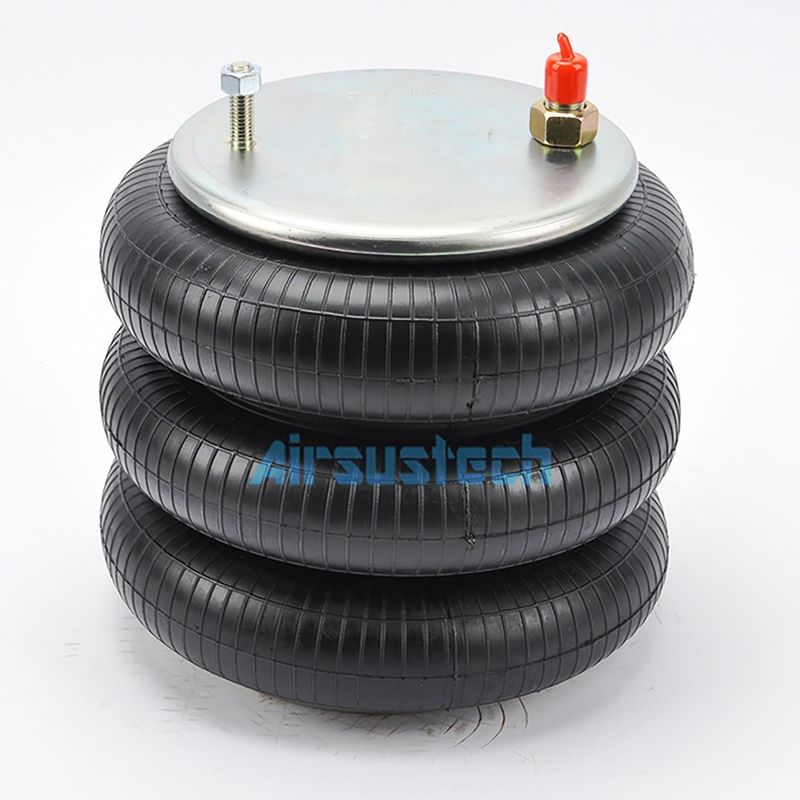

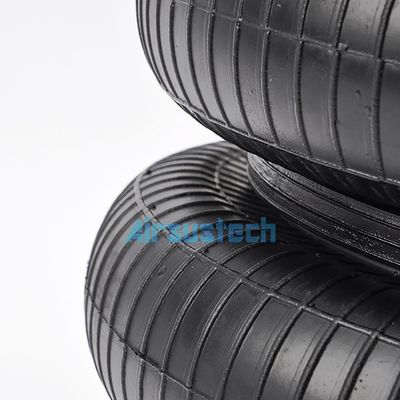

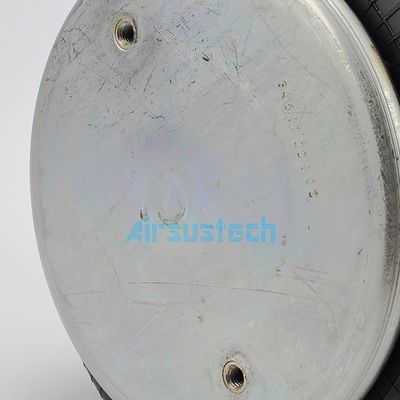

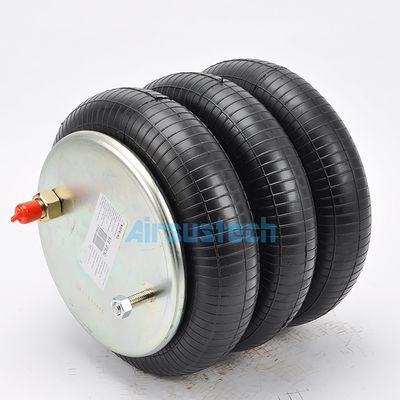

The related picture of 3B8027
