Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Datos del producto:

Lugar de origen:	Cantón, China
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949:2009
Número de modelo:	G4074

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	$49.9/pc-$89.9/pc
Detalles de empaquetado:	Caja de cartón fuerte o según lo necesiten los clientes
Tiempo de entrega:	2-8 días laborables
Condiciones de pago:	T/T, Western Union, L/C, Paypal, otros negociación
Capacidad de la fuente:	10000 unidades/semana

Contacto

Descripción detallada del producto

Tipo de material:	De goma/de acero	Garantía:	12 meses
Paquete:	Empaque estándar o personalizado	Origen:	Porcelana
Tipo de bienes:	Air Spring/Air Bolss/Air Ballons	Sistema de suspensión:	Sistema de suspensión
Prueba del fracaso:	millones ≥3	Marca:	GUOMA G4074
Resaltar:	Truck seat air suspension spring , Goodyear air shock absorber , Cab shock absorber with piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Truck Seat Suspension Air Spring 1S4-074 Goodyear Air Shock With Piston

Product Specifications

Brand: GUOMAT

Product Name: Driver Cab Suspension

Model Name: G4074

Compatible Part Numbers

GOODYEAR Number: 1S4-074 / 1S 4-074 / 1S4 074 / 1S4074

GOODYEAR Piston Number: ASC-08-7-134 / ASC 08 7 134 / ASC087134

V-OLVO Number: 66003-3201 / 66003 3201 / 660033201

Technical Data: Truck Cab Air Spring

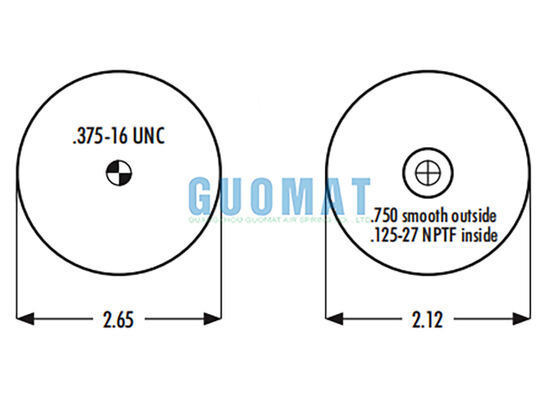

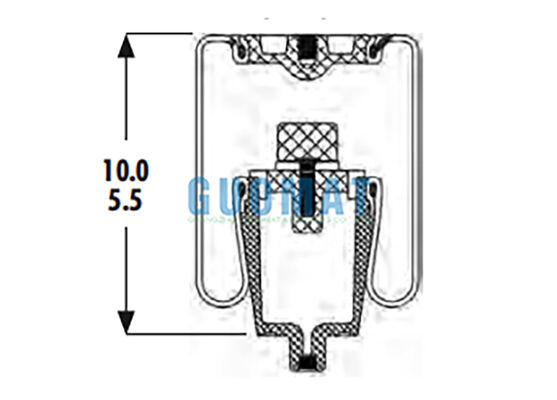

Specification	Measurement
Top cover diameter	72mm
Threaded hole	3/8-16UNC
Outer diameter	103mm
Air Hole	1/8NPTF
Base height	124.5mm
Design height	193mm
Maximum height	370mm
Minimum height	40mm

Applications

Truck Driver Seat Suspension Systems - Reduces road vibration and improves driving comfort during long-distance transportation
Heavy Duty Truck Cab Seats - Supports seat suspension to maintain stability and reduce driver fatigue
Commercial Vehicles - Suitable for buses, construction vehicles, and special transport trucks equipped with air suspension seats
Agricultural and Industrial Machinery Seats - Helps absorb shocks in tractors, harvesters, and other heavy equipment
Off-Road and Construction Equipment - Improves seating comfort in rough working environments

Key Features

Effective Vibration Absorption: The air spring design helps reduce vibration and shocks transmitted from the vehicle chassis to the driver seat
High Strength Rubber Bellows: Manufactured with durable reinforced rubber materials to ensure long service life and reliable performance
Piston Type Structure: The integrated piston design provides stable support and maintains consistent suspension performance
Improved Driver Comfort: By absorbing road impacts, the seat suspension system helps reduce driver fatigue during long hours of operation
Stable Seat Height Control: The air spring maintains proper seat positioning and contributes to better driving ergonomics
Easy Installation and Replacement: Designed for direct installation in compatible seat suspension systems, making replacement quick and convenient
