1S4.5-13 Goodyear Cab Air Spring Replacement 579-08-7-219 Truck Suspension Air Bag

Datos del producto:

Lugar de origen:	Cantón, China
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949:2009
Número de modelo:	G4.5113

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	$49.9/pc-$89.9/pc
Detalles de empaquetado:	Caja de cartón fuerte o según lo necesiten los clientes
Tiempo de entrega:	2-8 días laborables
Condiciones de pago:	T/T, Western Union, L/C, Paypal, otros negociación
Capacidad de la fuente:	10000 unidades/semana

Contacto

Descripción detallada del producto

Estilo:	Amortiguación de aire con resorte del estilo de la manga	Tipo de material:	De goma/de acero
Garantía:	12 meses	Paquete:	cajas de cartón
Condición:	Nuevo	Solicitud:	Para camiones y taxis
Función:	Reducir la vibración	buen año:	1S4.5-113
Resaltar:	Goodyear cab air spring replacement , truck suspension air bag , cab air shock absorber

1S4.5-13 Goodyear Cab Air Spring Replacement 579-08-7-219 Truck Suspension Air Bag

Product Overview

Brand	GUOMAT
Model Number	G4.5113
Material	Rubber/Steel
Position	Seat
Warranty	12 Months
Color	Black

Cross-Reference Part Numbers

Goodyear 1S4.5-113 • Goodyear 1S 4.5-113 • Goodyear 1S4.5 113 • Goodyear Piston 579-08-7-219 • Goodyear Piston 579 08 7 219 • Goodyear Piston 579087219 • Firestone 7056 • Firestone 10.87 WHITE • Firestone W02-358-7056 • Firestone W02 358 7056 • Firestone W023587056 • Contitech SC29-W056 • Contitech SC29 W056 • Contitech 69930 • Automann ABSZ70-7056 • TRP AS70560 • Lind Cab&Seat Springs 1102-0043

Technical Specifications

Parameter	Specification
Top Plate Hole / Stud Quantity	1
Top Plate Diameter	2.65 in
Top Plate Center-to-Center Diameter	N/A
Bottom Plate Hole / Stud Quantity	1
Bottom Plate Diameter	2.12 in
Bottom Plate Center-to-Center Diameter	N/A
Bottom Plate Alignment	Parallel
Internal Bumper	Not Included
Mounting Bracket	Not Included

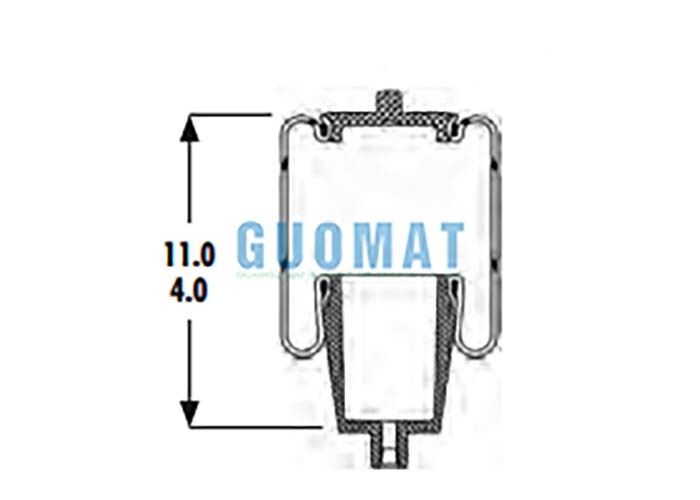

Minimum Height	4 in
Maximum Height	11 in

How to Replace a Broken Truck Cab Air Spring

Replacing a broken truck cab air spring is crucial for maintaining proper vehicle suspension function. Follow these steps for a successful replacement:

Inspect the Damaged Air Spring: Check for cracks, breaks, bulges, air leakage, abnormal vehicle height, unusual noises, or uncomfortable vibrations while driving.
Prepare Tools and Replacement Parts: Gather jack or vehicle support frame, wrench or screwdriver, new truck cab air spring, protective gloves, and safety glasses. Ensure compatibility with your vehicle model.
Lift the Vehicle: Use a jack to lift the truck and secure with a support frame for safety.
Remove the Old Air Spring: Locate the air spring in the suspension system and remove fixing bolts or connectors. Carefully remove without damaging surrounding components.
Install the New Air Spring: Align securely with the suspension system and tighten all bolts to ensure they are not loose.
Check the Installation: Verify proper alignment and correct connection of air hoses.
Lower the Vehicle and Test: Slowly lower the truck and perform a short test drive to check proper function and vibration absorption.
Regular Inspection: Check air spring condition regularly, especially after long-distance driving, for pressure problems or damage.
