FD 110-17A 775 Contitech Vibration Isolation Air Bag 2B7-548 Goodyear Pneumatic Bellows Manufacturer

Datos del producto:

Lugar de origen:	Cantón, China
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949:2009
Número de modelo:	2B7659

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	$59.9-69.9/pc
Detalles de empaquetado:	Caja de cartón fuerte o según lo necesiten los clientes
Tiempo de entrega:	2-8 días laborables
Condiciones de pago:	T/T, Unión Occidental, L/C
Capacidad de la fuente:	1000 unidades/semana

Contacto

Descripción detallada del producto

Material:	Caucho y Acero	Garantía:	12 meses
Función:	Reducir el shock	tipo:	Tipo doble enrevesado
Ataque:	2,2''-9,9''	Agujero roscado:	3/8-16UNC
buen año:	2B7-548	Número del bramido:	FD 110-17A
Resaltar:	Contitech vibration isolation air spring , Goodyear pneumatic bellows air bag , industrial air spring with warranty

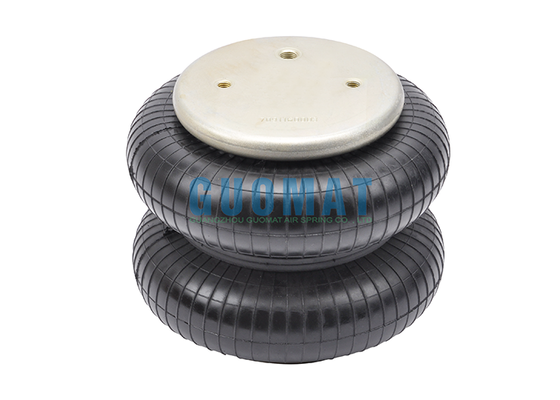

FD 110-17A 775 Contitech Vibration Isolation Air Bag 2B7-548 Goodyear Pneumatic Bellows

Product Name: Convoluted Air Spring
Model Number: 2B7659
Production Place: GuangDong, China
Warranty: 1 Year Warranty
Material: Natural Rubber and Steel
Package: Strong Brown Carton
Scope of Application: Sports Equipment, Precision Instruments, Experimental Equipment, Test Bench Equipment, etc.

Compatible Part Numbers

Contitech FD110-14A 775
Contitech FD 110-14A 775
Firestone Style 26
Firestone W013587659
Firestone W01 358 7659
Firestone W01-358-7659
FleetPride AS7659
Goodyear 2B7-548
Goodyear 2B 7-548
Goodyear Flex No. 579923526
Goodyear Flex No. 579 92 3 526
Goodyear Flex No. 579-92-3-526
Triangle AS-4775
TRP AS76590
Automann 2B07RA-7659
Hendrickson 005079

Technical Specifications

Specification	Measurement
Top cover diameter	5.5 inches
Top cover threaded holes	2pcs x 3/8-16UNC
Center distance between top cover threaded holes	2.75 inches
Bottom cover diameter	5.5 inches
Bottom cover threaded holes	2pcs x 3/8-16UNC
Center distance between bottom cover threaded holes	2.75 inches
Maximum outer diameter	8 inches
Maximum height	9.9 inches
Minimum height	2.2 inches

Performance Features

The GUOMAT 2B7659 double convoluted air spring provides stable lifting and lowering functions for industrial equipment requiring precise movement control. By adjusting internal air pressure, this air spring enables smooth raising and lowering of machine platforms, worktables, conveying systems, and automated production equipment.

Compared with traditional hydraulic or metal spring systems, the 2B7659 air spring offers softer, more stable lifting performance. Compressed air provides balanced support force, allowing equipment to move smoothly without sudden vibration or impact. During lowering, the air spring gradually releases pressure to prevent hard contact and protect machine components from excessive wear.

In automated production lines and material handling systems, the GUOMAT 2B7659 air spring is used for height adjustment and leveling applications. It maintains stable positioning under changing loads, ensuring accurate machinery operation and improving production precision. Its excellent vibration isolation performance reduces operational noise and protects sensitive equipment from external shock.

Manufactured with high-strength rubber materials and reinforced cord construction, the GUOMAT 2B7659 air spring delivers reliable durability, excellent air tightness, and long service life in demanding industrial environments. With smooth lifting capability, stable lowering control, and efficient shock absorption, it is an ideal solution for modern industrial equipment requiring safe and precise vertical movement functions.
