3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine

3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine

  • 3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine
  • 3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine
  • 3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine
  • 3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine
3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine
Datos del producto:
Lugar de origen: GUANGZHOU CHINA
Nombre de la marca: GUOMAT
Certificación: ISO/TS16949, ISO9001
Número de modelo: 1B7742
Pago y Envío Términos:
Cantidad de orden mínima: 5 piezas
Precio: USD49.9-59.9/PC
Detalles de empaquetado: Caja de cartón resistente o según los requisitos del cliente
Tiempo de entrega: 3-7 días laborables
Condiciones de pago: LC, T/T, Western Union u otros
Capacidad de la fuente: 1000 unidades/semana
Contacto
Descripción detallada del producto
Garantía: 12 meses Función: Reducir el shock
Tipo de suspensión: Muelle neumático industrial tipo: Lleno de gas
muestra: Disponible Son adecuados: 3/4NPT
Referencia cruzada: Pedernal W01-358-7742 Convoluciones: 1
Resaltar:

3/4 NPT air spring

,

Firestone industrial air bag

,

air spring for cutting machine

3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742
Single Convoluted Air Spring designed specifically for cutting machines and industrial automation equipment requiring stable vibration isolation and precise motion control.
Product Specifications
Model No.: 1B7742
Material: Rubber Steel
Warranty: One Year
Condition: Brand New
Packing: Neutral Packing or Custom Requirements
Delivery: 2-8 working days after payment confirmation
Technical Data
Top Cover Plate
  • Diameter: 115mm
  • 2 threaded holes (2 pieces x 3/8-16UNC)
  • Center distance between bolts: 44.5mm
  • Vent specification: 3/4 NPT
Bottom Cover Plate
  • Diameter: 115mm
  • 2 threaded holes (2 pieces x 3/8-16UNC)
  • Center distance between bolts: 44.5mm
Overall Dimensions
  • Maximum outer diameter: 165mm
  • Maximum height: 115mm
  • Minimum height: 50mm
Cross-Reference Part Numbers
Compatible with Firestone Style 131 air springs:
  • Firestone W01-358-7742 / WO1-358-7742
  • Firestone W01 358 7742 / WO1 358 7742
  • Firestone W013587742 / WO13587742
Firestone Style 131 Air Spring Reference
Part Number Description
W01-358-7731 Blind nuts, 1/4 NPT
W01-358-7742 Blind nuts, 3/4 NPT
W01-358-0127 Socket head aluminum bead rings (bolts, nuts, washers not included - use 1/4 cap screws)
W01-358-7729 3/4 NPT (only) upper plate, blind nuts lower plate
W01-358-0131 Rubber bellows only
Application Benefits
GUOMAT 1B7742 Industrial Air Bag provides excellent shock absorption and flexible load support during high-speed cutting operations. Constructed from high-strength rubber and reinforced cord fabric, this air spring delivers:
  • Reduced machine vibration and noise levels
  • Improved cutting accuracy and precision
  • Enhanced equipment performance stability
  • Effective absorption of impact forces during repetitive cutting cycles
  • Extended service life of machine components
  • Adjustable elasticity and superior cushioning compared to traditional metal springs
Ideal for modern precision machinery and industrial production lines, GUOMAT air springs feature reliable sealing performance, high fatigue resistance, and long-lasting durability. Each unit undergoes rigorous testing for air tightness and durability to ensure stable operation in demanding industrial environments.
Common Applications: Packaging machines, punching equipment, vibration systems, lifting platforms, and automated machinery.
Product Images

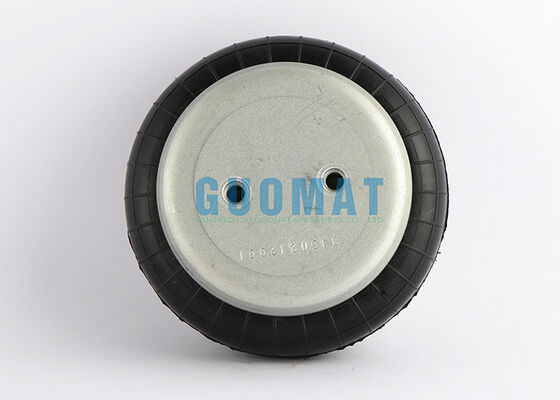

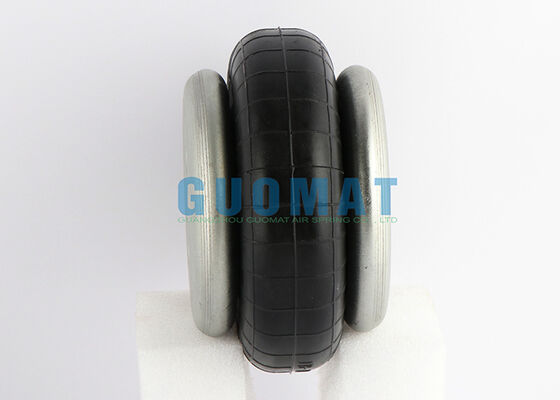

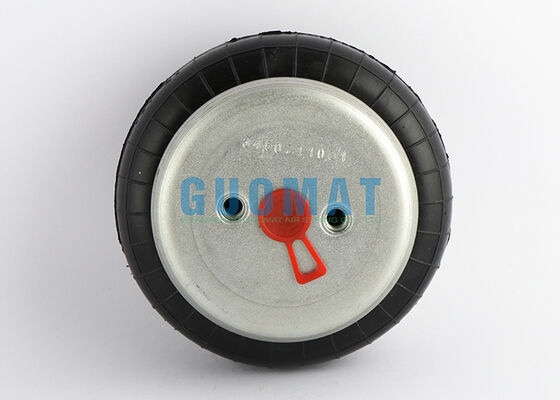

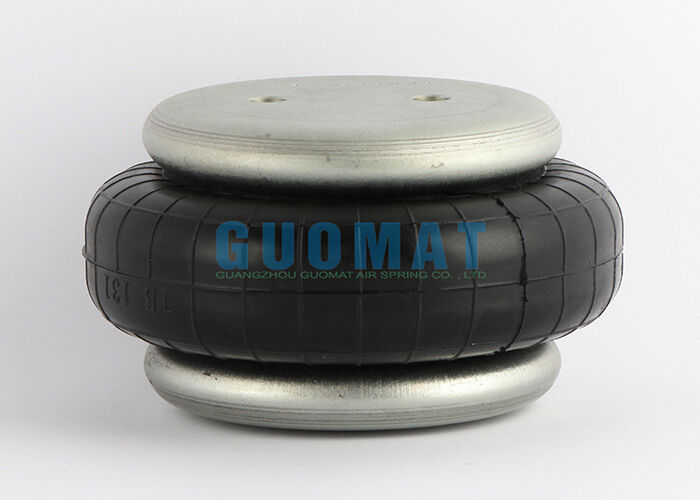

3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine 0 3/4 NPT Air Fitting Convoluted Air Spring W01-358-7742 Firestone Industrial Air Bag For Cutting Machine 1

etiqueta:

primaveras del ayudante del aire,

piezas de la suspensión del aire,

amortiguación de aire con resorte enrollada
