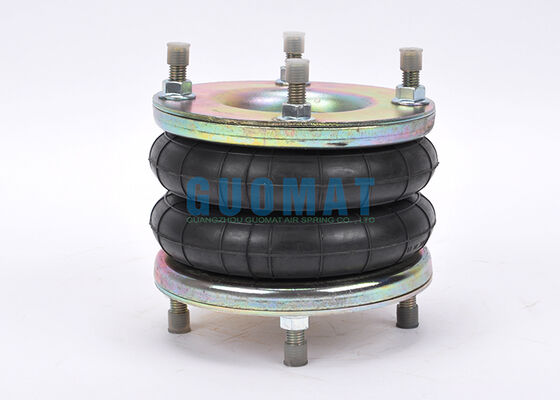

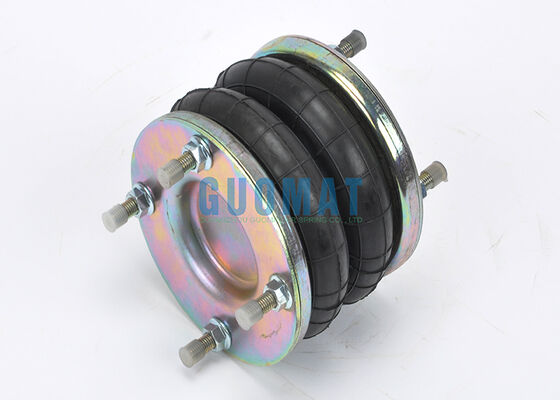

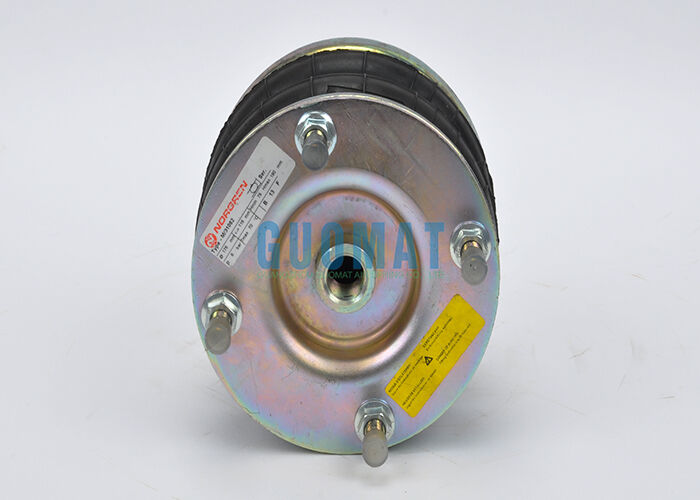

6" Diameter Norgren Air Spring M/31062 Industrial Air Bellows For Spinning Machine

Datos del producto:

Lugar de origen:	Cantón, China
Nombre de la marca:	NORGREN
Certificación:	ISO/TS16949:2009
Número de modelo:	M/31062

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	Negociable
Detalles de empaquetado:	Caja de cartón fuerte o según lo necesiten los clientes
Tiempo de entrega:	2-8 días laborables
Condiciones de pago:	T/T, Unión Occidental, L/C
Capacidad de la fuente:	1000 unidades/semana

Contacto

Descripción detallada del producto

Material:	Rubber+Aluminum natural	Color:	Negro
Función:	Absorción de impactos	Operación:	Lleno de gas
Nombre del producto:	Norgren Air Bellow	NORGREN:	M/31062
Número de circunvoluciones:	2	Peso:	2,2 kg
Resaltar:	6 inch Norgren air spring , industrial air bellow spinning machine , M/31062 air spring with warranty

Norgren M/31062 Industrial Air Spring

The Norgren M/31062 is a high-performance double convoluted industrial air bellows designed for vibration isolation, lifting, and tension control applications in spinning and textile machinery.

With a 6-inch nominal diameter and 115 mm stroke, this original Norgren air spring provides stable force output, smooth motion, and excellent shock absorption during continuous machine operation.

Widely used in spinning machines, winding systems, textile production lines, and other precision industrial equipment, the M/31062 air spring helps reduce vibration transmission, improve machine stability, and extend equipment service life. Its reinforced rubber bellows and steel mounting structure ensure reliable performance under long-term cyclic loading conditions.

Product Specifications

Technical Data

Top cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Bottom cover plate: 153.5 mm diameter with four M10 threaded holes (127 mm bolt center distance)
Air port specification: G1/2
Maximum outer diameter: 175 mm
Maximum height: 190 mm
Minimum height: 75 mm

Performance Data - Force and Spring Characteristics

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Force (Load) KN	2.7	3.7	4.7	5.7	6.7	7.8	2
Spring Rate N/cm	650	830	1015	1185	1360	1530
Natural Frequency f0 Hz	2.5	2.4	2.3	2.3	2.3	2.2

Performance Data - Height vs Pressure

Pressure P (bar)	3	4	5	6	7	8	Vol V(I)
Height H(mm) 170	2.2	3	3.8	4.7	5.6	6.5	2.1
Height H(mm) 150	2.8	3.9	4.9	6	7.1	8.2	1.9
Height H(mm) 130	3.5	4.7	5.9	7.1	8.4	9.7	1.7
Height H(mm) 110	4.1	5.4	6.8	8.2	9.6	11.1	1.4
Height H(mm) 90	4.7	6.3	7.9	9.5	11.1	12.8	1.1
