2B9-200/2B9-202/2B9-216 Goodyear Double Convoluted Air Spring 578423202 Air Bellows Replacement

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	GUOMAT
Certificación:	ISO/TS16949:2009
Número de modelo:	2B6910

Pago y Envío Términos:

Cantidad de orden mínima:	6 piezas
Precio:	US$59.9-69.9/PC
Detalles de empaquetado:	Caja de cartón fuerte o según lo necesiten los clientes
Tiempo de entrega:	3-7 días laborables
Condiciones de pago:	LC, D/A, D/P, T/T, Unión Occidental
Capacidad de la fuente:	1000 unidades/semana

Contacto

Descripción detallada del producto

Nombre del artículo:	Muelle neumático industrial	Estructura de fuelles:	Tipo doble enrevesado
Ataque:	225 mm	Otros nombres:	Vibración del resorte neumático
Función:	Reducir la vibración	Operación:	Lleno de gas
Artículo:	Airbag industrial	El movimiento:	75 mm-260 mm
Resaltar:	Goodyear double convoluted air spring , Industrial air spring replacement , 578423202 air bellows

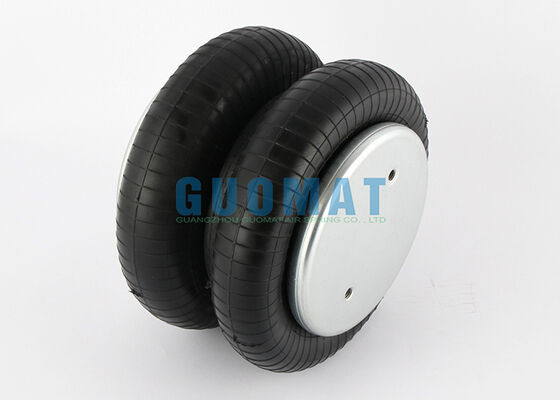

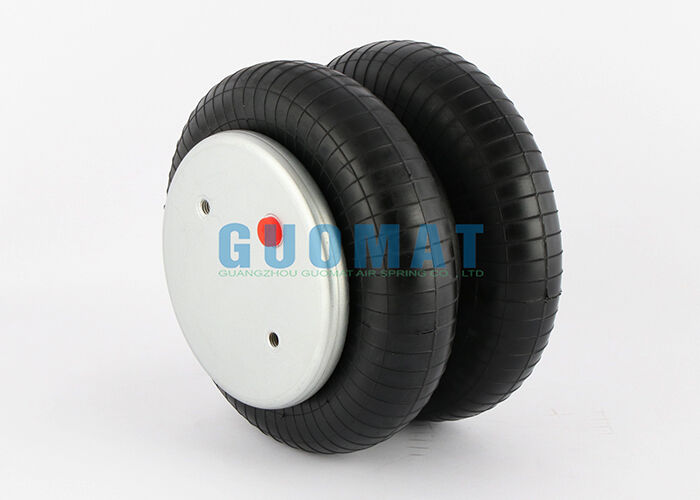

Goodyear Double Convoluted Air Spring 578423202

The GUOMAT 2B6910 is a high-performance double-convoluted industrial air spring designed for shock absorption, vibration isolation, load support, and air suspension systems in industrial equipment.

Featuring a dual-layer rubber bellows structure, it utilizes compressed air to provide flexible, resilient support. This design effectively absorbs shocks and vibrations generated during equipment operation while maintaining stable load-bearing capacity.

Product Specifications

Type:

Double Convoluted Type Air Bags

GUOMAT:

2B6910

Warranty:

1 Year

Material:

Rubber, Steel

Description:

Rubber Air Spring

Size:

OEM Standard

Packaging:

Regular Packing or As Per Customer Requirements

Alternative Part Numbers

Manufacturer	Part Number
Firestone	W01-358-6910
Contitech	FD 200-19 320
Goodyear	2B9-200
Goodyear	2B9-202
Goodyear	2B9-216
Goodyear	578423202
Goodyear	578 42 3 202
Goodyear	578-42-3-202
Triange	6325
Triange	4320
Taurus	KF218-6910

Additional Cross-References: Brake&Wheel: M3501, Dina: A812719, Dina: AZ812719, Dayton: 3546910, Leland: Sc2011, Navistar: 554783C1, Hendrickson: S8768, Hendrickson: 458433, Ridewell: 1003586910C, SAF Holland: 57006910, Trailers De: 133128, Tuthill: 1371, Watson&Chalin: AS-0001, Watson&Chalin: AS-0156G

Product Structural Advantages

Double-convoluted rubber air bellows: The dual-convolution design increases air volume, resulting in smoother elasticity characteristics that adapt to varying load conditions.
Steel top and bottom end caps: High-strength steel end caps enhance installation reliability and ensure long-term load-bearing stability.
Adjustable air pressure: Adjusting the internal air pressure allows for modification of the air spring's stiffness and load-bearing capacity, ensuring optimal equipment performance.
