FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows

  • FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows
  • FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows
  • FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows
FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows
Datos del producto:
Lugar de origen: Guangdong, China
Nombre de la marca: GUOMAT
Certificación: ISO/TS16949:2009
Número de modelo: 2B7788
Pago y Envío Términos:
Cantidad de orden mínima: 6 piezas
Precio: $59.9-69.9/pc
Detalles de empaquetado: caja fuerte de cartón o como los clientes necesitan
Tiempo de entrega: 2-8 días de trabajo
Condiciones de pago: T/T, Western Union, L/C
Capacidad de la fuente: 1000pcs/semana
Contacto
Descripción detallada del producto
Nombre del modelo: Resorte de aire suspensivo Garantía: 1 año
Material: Cubierta de caucho y aluminio natural Paquete: Cartón/cartones
Color: Negro Referencia cruzada: Goodyear 2B9-245
Chorro: W01-358-7788 Las empresas de servicios de telecomunicaciones Altura máxima: 274m m
Resaltar:

Firestone suspension air bags

,

Goodyear convoluted rubber bellows

,

510 Firestone air spring

FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows
Product Description

The GUOMAT 2B7788 is a high-performance air spring designed to replace Goodyear 2B9-245 models. Utilizing high-quality rubber and high-strength cord, it offers exceptional durability, sealing, and fatigue resistance, effectively filtering road vibrations and enhancing ride comfort and vehicle stability. Easy to install, it's an ideal repair and upgrade for suspension systems on commercial trucks, buses, and other vehicles.

Compatibility
  • GUOMAT Number: 2B7788
  • Compatible with Goodyear: 2B9-245 / 2B 9-245
  • Compatible with Goodyear: 578923202 / 578-92-3-202 / 578 92 3 202
  • Compatible with Contitech: 64519
  • Compatible with Contitech: FD200-19 510 / FD 200-19 510
  • Compatible with Contitech: 7788
  • Compatible with Contitech: W01-358-7788 / W01 358 7788 / W013587788
  • Compatible with Automann: ABSP2B12R-7788
  • Compatible with Triangle: 4510
  • Compatible with Watson&Chalin: AS-0088
Technical Data

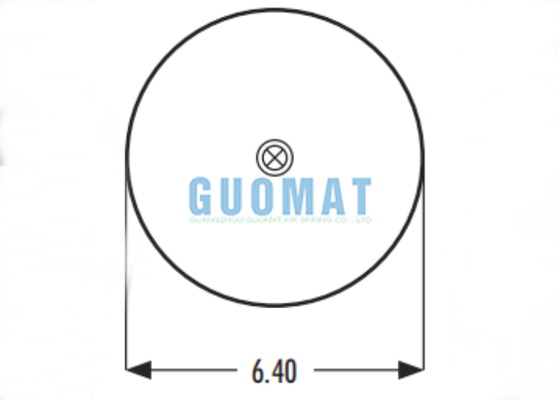

1. Top cover diameter: 160mm
2. Bottom cover diameter: 160mm
3. Center-to-center distance between bottom threaded holes: 89mm
4. Maximum outer diameter: 251.5mm

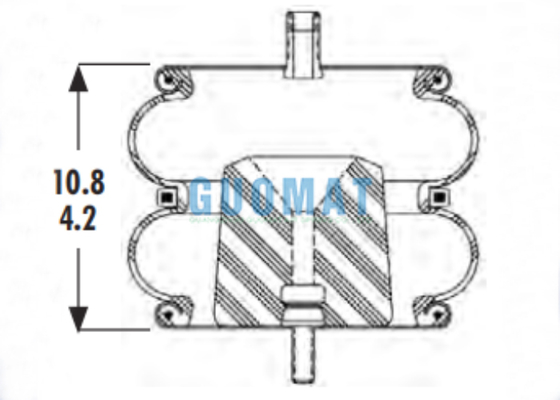

5. Maximum height: 274mm
6. Minimum height: 95mm
About Shipping
(1) Your goods will be shipped within 1-7 days after payment. We will use fast and secure express delivery methods such as DHL, TNT or FEDEX, and it will take about 5-10 days to reach most countries/regions in the world.
(2) We hope that the goods will be delivered on time, but since this is an international delivery, the actual delivery time depends on the logistics company and local customers.
(3) For any problems caused by the shipping service, such as accidents, delays or other problems, we will actively handle it for you.
(4) Any import fees are borne by the buyer.
GUOMAT Other Air Spring Models
Firestone Contitech Goodyear Phoenix
W01-M58-6165 FS 120-9
W01-M58-6166 FS 120-9
SP 1 B 07
W01-358-7731
W01-M58-6374 FS 200-10 SP 1B 12
FS 70-7 SP 1 B 05
W01-358-7008 FS 330-11 474 1B12-300/313
W01-358-7009 FS 330-11 468 1B12-301/578913301
W01-358-6994/19 FS 330-11 647
FS 40-6 1/8 M8 SP1B04
W01-358-7564 FS120-10 1B8-550
W01-358-6932 FD 200-19 452 2B9-246
W01-358-6935 FD 200-19 499 2B9-201
W01-358-6940 FD 200-19 450 2B9-230
W01-358-6941 FD 200-19 448 2B9-265/280
W01-358-6949 FD200-19506
W01-358-7788 FD 200-19 510 2B9-245

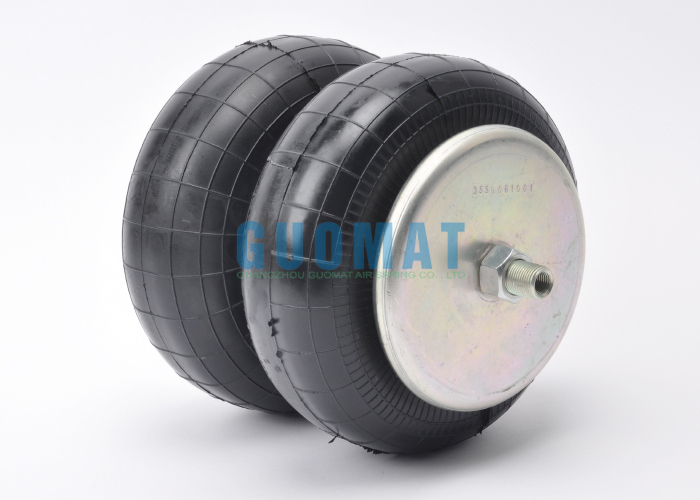

Real Product Picture
FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows  0 FD 200-19 510 Firestone Suspension Air Bags 2B9-245 Goodyear Convoluted Rubber Bellows  1
